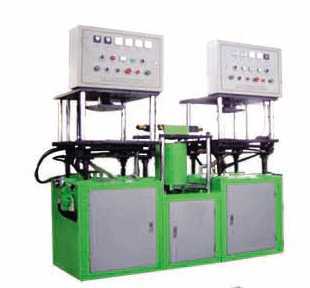

double site hydraulic  wax injection machine - precision Casting equipment

Major technique parameter:

Specification:

MYY6.3-2-5

MYY6.3-2-8

Power,V:

380VAC

380VAC

Installed Power,kw:

4.5kw

4.5kw

Mold Clamp Force,T:

5

8

System Pressure,MPa:

7.0

7.0

Wax Injection Pressure,MPa:

2-6.3

2-6.3

Wax Injection TEMP.,:

3080

3080

Wax Cylinder Volume,L:

7

7

Platen Speedclose,mm/S:

53

34

Injection The WaxSpeed,L/S:

0-0.3

0-0.3

Injection The WaxTime,S:

0-99

0-99

Work Area Size(L*W*H),mm:

480×480×260mm

500×400×320mm

Contour Size(L*W*H),mm:

1850×760×1800mm

2150×900×1800mm

Weight,kg:

1200kg

1500kg
