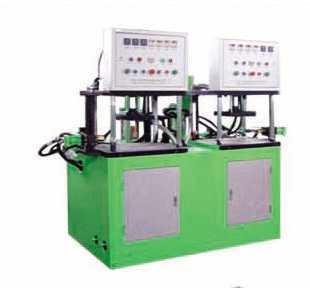

double site hydraulic  wax injection machine - investment casting machine

Specification:

MMY6.3-2-8

MMY11-2-10

Power ,V :

380V AC

380V AC

Installed Power,kw:

8.5kw

14.5

Mold Clamp Force,T:

8

10

System Pressure,MPa:

7.0

14.0

Wax Injection Pressure,MPa:

6.3

2-11

Wax Injection TEMP.,:

30-90

30-90

Wax Cylinder Volume,L:

80

80

Platen Speed close,mm/S:

34

42

Injection The Wax Speed, L /S :

0-0.3

0-0.3

Injection The Wax Time,S:

0-99

0-99

Quantity Of Wax Injecting /one time, L:

0- 2.4

0- 2.4

Work Area Size(L*W*H),mm:

500×400×300

520×400×360

Contour Size(L*W*H),mm:

1750×1100×1800

2350×1270×1800

Weight ,kg:

1500kg

1700kg

Description: This machine is applied in investment casting industry to shape many kinds of medium and small scale wax patterns of complicated shape, high quality and great precision; Model MMY11-2-10 adopts PLC electric control and has strong adaptability to enviorenments and low malfunction ratio; it can well coordinate different wax injection pressures to improve the surface quality of wax pattern to the highest extend.
